Wednesday, June 12, 2019

Android - Samsung My Files App

Short version

Samsung mobile devices keep a list of stored media files in the following location and database:
data/data/com.sec.android.app.myfiles/databases/FileCache.db
These same devices also keep track of recent accessed media in the following location and database:
data/data/com.sec.android.app.myfiles/databases/myfiles.db
The following queries at https://github.com/abrignoni/DFIR-SQL-Query-Repo/ can be used as templates to extract data from the aforementioned databases.

  • FileCache.db
    • Table: Filecache
    • Fields: storage, path, size, date, latest_date
  • myfiles.db
    • Table: recent_files
    • Fields: nane, size, date, _data, ext, _source, description, recent_date
Long version

Samsung devices come preinstalled with the Samsung My Files app. The app can also be used on other branded devices by download and install of the app via the Google Play store.

Samsung My Files app
The app description tells us the main software features.
[Key features]- Browse and manage files stored on your smartphone, SD card, or USB drive conveniently..Users can create folders; move, copy, share, compress, and decompress files; and view file details.
- Try our user-friendly features..The Recent Files list: Files the user has downloaded, run, and/or opened.The Categories list: Types of files, including downloaded, document, image, audio, video, and installation files (.APK)
Stored files analysis

The My Files app directory data resides in the data/data/com.sec.android.app.myfiles directory as seen in the next image.

App directory contents
Within this directory the SQLite FileCache.db file can be found. In the FileCache table one can find information on stored media to include path, size in bytes, date timestamp, and latest timestamp.


A simple query can be produce to extract this data. One can be found here.

Recent files list analysis

Within the same database directory one can also find the SQLite myfiles.db file. The recent_files tables keeps information on recently accessed files as explained in the app description from the Google Play store. This table tracks of file name, size in bytes, data, path, extension, source, description and recent date.


A simple query can be produced to extract this data. One can be found here.

Why does this matter?

A list of files as recorded by the app can give us clues on what files once existed on the device if these files were deleted before the usage of the My Files app. The utility of the recent apps list is even more apparent since we can correlate particular real world events with the last usage of pertinent media on the device. User generated artifacts should be of interest to the analyst, even more so when they intersect with other parts of the case we are working. Only by knowing that such artifacts exist can we make use of them.

As always I can be reached on Twitter @AlexisBrignoni and email 4n6[at]abrignoni[dot]com.

Tuesday, June 11, 2019

Android - Predictive text exclusions in Samsung devices

Short version

Samsung keyboard predictive text exclusions are located in the following location and database:
data/data/com.sec.android.inputmethod/databases/RemoveListManager
The following query at the https://github.com/abrignoni/DFIR-SQL-Query-Repo
can be used as a template to extract text exclusion entries from the RemoveListManager database.
  • RemoveList
    • Fields: removed_word, time_word_added
SwiftKey predictive text exclusions are located in the following location and text file:
data/data/com.sec.android.inputmethod/app_SwiftKey/user/blacklist
  • Blacklist
    • Text file contents are composed of one excluded word per line.

Long Version

The following discussion shows how excluded words from the Samsung keyboard's predictive text are stored in Samsung Android devices.

Predictive text options in Samsung Android phones
Predictive text is an Android feature that learns the user's most used typed words and presents them as options for autocomplete. For example if I type the city name "San Juan" with regularity on my device the next time I start typing "San" the predictive text option will volunteer the full name "San Juan" as an option to complete the word for me. Auto-predictive text saves the user time since I can type the word full word in just 3 taps (San + tap on the suggestion or tap spacebar for auto complete) instead of the 8 taps needed for the full name to be spelled out.

What happens when the keyboard is giving you a suggestion for a word that you don't want constantly for a set of initial letters? Imagine that currently instead of typing "San Juan" constantly you find yourself typing "San Lorenzo" instead since you moved to a new city. Every time you type "San" you get the suggestion "San Juan" instead of "San Lorenzo". By long pressing the suggestion box the keyboard gives you the option to stop suggesting the pressed word moving forward.

What happens to the long pressed word that will now not be suggested anymore? The same process is used for text exclusions for the SwiftKey keyboard app. Where does these excluded or blacklisted words reside? Why would finding these items be of importance to the forensic analyst?

Samsung Keyboard Analysis

On Samsung Android devices data related to keyboard configurations reside in the data/data/com.sec.android.inputmethod directory. The following image shows the contents of the aforementioned directory.

Database folder exist when a blacklisted word exists

Notice in the image above how the databases folder is highlighted. This directory did not exist until I added a word to be excluded on the Samsung keyboard. Within this directory resides the SQLite database named RemoveListManager. Within the database the RemovedList table keeps the excluded word list.


In the previous image the word EMBASSIES was excluded. Notice the added time. While doing testing the actual time of addition was 2019-06-11 09:13:51. There is a difference of 4 hours. It is my assumption that the date shown is UTC time in human readable format. This underlines how important it is to test your conclusions. On your case work it is key to duplicate the environment by getting a similar phone to the original and do your own testing.

Samsung SwiftKey Analysis

Just like the Samsung Keyboard, the SwiftKey keyboard app keeps pertinent data in the data/data/com.sec.android.inputmethod directory.

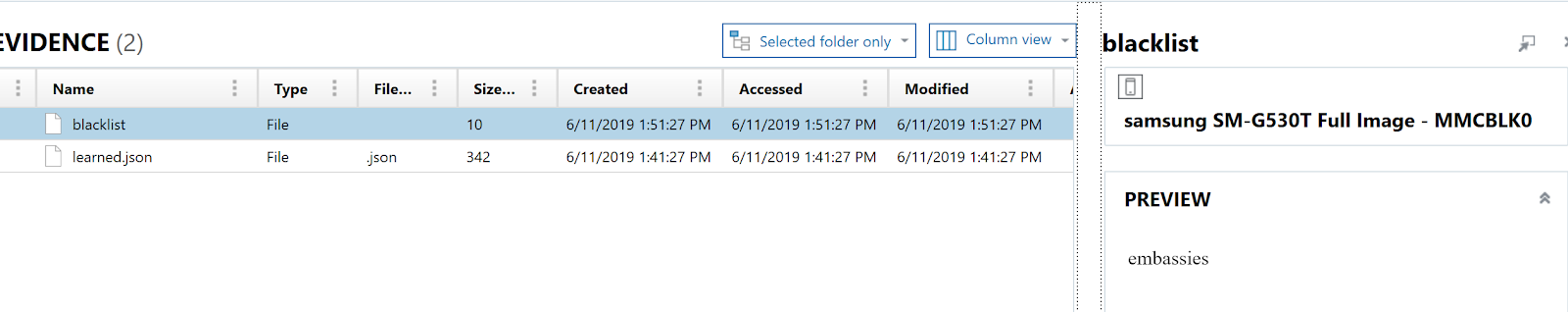

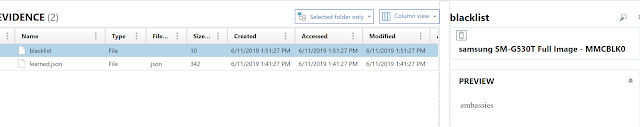

As seen in the previous image the user directory is where the excluded word list resides. The following image shows the contents of the blacklist text file.

For this analysis the creation and modified dates can be used to show when the list was created first and modified last. Dates for words excluded that are between the first and last entries on the list lack a timestamp or a way to infer it.

Why does this matter?

Excluded words are voluntary user generated events. When a user decides to exclude a word it is because it constantly gives suggestions to a list of words that are constantly typed. What would a list of excluded words that mostly contains terms related to child exploitation tell the digital forensic analyst? What can the analyst infer the user was typing? When was the exclusion made? Can the timestamp be correlated to a location by the use of another type of artifact on the device? User generated events tend to have relevance to our analysis and should be sought out and aggregated. We can make out the forest by getting at all those trees.

As always I can be reached on Twitter @AlexisBrignoni and email 4n6[at]abrignoni[dot]com.

Monday, June 3, 2019

Finding Badoo chats in Android using SQL queries and the MAGNET App Simulator

Short version

The Badoo Free Chat and Dating app keeps user generated chats in the following SQLite database:
userdata/data/com.badoo.mobile/databases/ChatComDatabase
The following queries at https://github.com/abrignoni/DFIR-SQL-Query-Repo can be used as templates to extract chats from the Badoo database:

  • Messages
    • Sender name, recipient name, chat message, create time, modified time, server status, payload.
  • User data
    • User ID, username, gender, age, user image url, photo url, max unanswered messages, sending multimedia enabled, user deleted.
By using the MAGNET App Simulator the messages can be easily seen in their native format. The simulator can be downloaded from here:
https://www.magnetforensics.com/resources/magnet-app-simulator/
Long version

The Badoo application is a chat and dating platform for Android and iOS. The app website claims a to have over 425,000,000 users and counting.

Large install base
The app seem to be fairly popular in the Google Play store with over 4 million reviews.


The following analysis came to be due to a request from a digital forensics examiner not being able to parse the app data using commercial mobile forensic tools. I procured consent from my colleague to use the data sets in the creation of the queries and accompanying blog post. With that being said I will obscure usernames and chat content in the data sets due to the fact that they are in French, which I do not speak, and I want to avoid publishing something without knowing what it says.

Analysis via SQL queries

The data is kept in the SQLite ChatComDatabase file located in the userdata/data/com.badoo.mobile/databases/ directory. Within the database there are 2 tables containing data of interest.

Conversation_info
This table contains the user IDs, gender, user names, age and profile photo URLs for all the users that chatted with the local Badoo app user. It is of note that the local app user information is not contained within this table. To identify the local user information I emulated the app with the Magnet App Simulator (more on that later) and was able to see the name and age of the local user.

Username obscured
With that information on hand I processed the app directory with Autopsy and did a text search for the user name which had a hit in the following path and filename:
userdata/data/com.badoo.mobile/files/c2V0dGluZ3M=
Note the base64 formatted filename. Using Cyberchef  it was easy to convert the base64 filename to ASCII as seen in the next image.


By looking at the contents of the settings file with Autopsy the following data can be obtained regarding the local user:

  • Username
  • Birth date
  • Telephone numbers
  • Weight & height
  • Body type
  • Workplace
  • Sexual orientation
  • Political orientation

It is of note that this user generated data surely would vary depending how much the user adds to their profile. Further testing would be required to confirm.

Regarding the user data of individuals that exchanged messages with the local user the User data query can be used to get the following column values as seen in the next image.



Messages
This table contains the user IDs, timestamps, and chat messages. The chat messages are contained in a field labeled as payload that holds them in JSON format. It is really easy to extract them using SQLite's the json_extract function. For an example on how to use the json_extract function see the following post on Slack app messages parsing:
https://abrignoni.blogspot.com/2018/09/finding-slack-messages-in-android-and.html
 Since the messages are referenced by their user IDs a join select of the messages and conversation_info tables had to be used to determine the sender and recipient names. To do this the select query had to take into account that the local user information was not found within the conversation_info table. This fact made it difficult to join the tables by user_ids since the most important user (the local user) did not have user name data to join. To overcome that obstacle I used two separate query conditions.

  1. Left join conversation info on sender_id = user_id
    This condition gave me all sender user names to include null rows that had data but no corresponding user name (i.e. the rows for the messages sent by the local user.)
  2. Left join conversation info recipient_id = user_id
    This condition gave me all recipient user names to include null rows that had data but no corresponding user name (i.e. the rows for the messages received by the local user.)
With these two queries on hand the idea was to join both selects by each row's unique ID. This would guarantee that there wouldn't be a one to multiple selection which would cause rows to be unnecessarily repeated. Then a simple order by created time would put all the messages in their proper order. I have also added a ifnull condition to the query so that every null username value will read 'local user' instead. The query and the result looks as follows:

To see the full query see the previously provided link

It is of note that I have added the payload data field with all the JSON content in it. This was important since some of the JSON content might not be a chat message but data regarding a shared image. When the chat_text field is null in the query results the examiner can simply go to the contents of the payload field to determine additional information like upload ID, expiration timestamp and the URL of the image itself. In the preceding image notice how the chat_text null field rows say "type":"permanent_image" in the payload field.

I plan to have these queries submitted to the MAGNET Artifact Exchange Portal soon.

MAGNET App Simulator
Main screen
As stated previously I used the simulator to identify local user data by visualizing the app data through the app itself. The process is simple and straight forward.

The first thing to do is extract the app APK from the device.

Load the APK

Then load the app directory.
Load app directory

The simulator brings up an Android instance within VirtualBox, installs the APK, and injects the app data into this new virtualized app instance.

Installing, importing, & injecting

The results are incredible.
Chats in viewed with the app itself, as intended

Conclusion
This analysis was interesting to me for a couple of reasons. The first one underlines the importance of always doing a manual visual check of what apps are available in our extractions and of these how many are parsed by our tools. The difference requires manual attention since the most important piece of data might reside where is not to be found readily. The second reason is how simulation or virtualization of apps does not substitute manual database analysis and that both techniques can and should be used together to guide a deeper analysis of the application data. Without the combination of both techniques the rich repository of local user data might have gone unnoticed since it wasn't accessible in the databases nor in the virtualized screens.

To end I would like to thank not only those who contribute to the DFIR field with tools, scripts and data sets but also those who reach out to ask questions because they want to learn and grow. Truly there is no better way to learn that by trying to fill the gaps of things yet to be known.

As always I can be reached on Twitter @AlexisBrignoni and email 4n6[at]abrignoni[dot]com.
